1) Descriptions of Transmission Gear Shaft
Transmission gear shaft is used in industrial production to achieve power transmission, speed regulation and movement direction change of
the key transmission components, in all kinds of mechanical equipment plays a bridge role.
2) Features of Transmission Gear Shaft
- Strong versatility: according to different industrial needs, design and manufacture of different specifications and parameters of the gear shaft, suitable for a variety of equipment.
- High reliability: after a long period of industrial practice verification, the structure is mature, and can operate stably under continuous, heavy-duty working conditions.
- Convenient maintenance: standardised design, strong interchangeability of parts, easy maintenance and replacement, reducing downtime and cost.
3) Working Principle of Transmission Gear Shaft
In the operation of industrial equipment, the power source drives the gear shaft to rotate, through the meshing transmission between the gears,
the power will be allocated to different working parts, to achieve a variety of functions of the equipment, such as textile machinery,
the gear shaft will be the power transfer to the various moving parts, to complete the spinning, weaving and other processes.
4) Application of Transmission Gear Shaft
It covers many industrial fields such as automobile manufacturing, electric power, chemical industry, textile, light industry and so on,
for example, the transmission between turbine and generator in power plant, the stirring shaft transmission of chemical reactor and so on.
Technical Specifications
| Parameter | Specification |
| Custom Made | Available |
| Gear Profile Type | Gleason |
| Manufacturing Process | Gear Grinding |
| Teeth Grinding | Included |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Lead Angle | Custom |
| Accuracy Grade | ISO 6 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62HRC |
Steel Code Grades Comparison
| CHINA/GB | ISO | ГΟСТ | ASTM | JIS | DIN |
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | | 18XГT | | SMK22 | |
| 20Cr2Ni4 | | 20X2H4A | | | |
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 | |

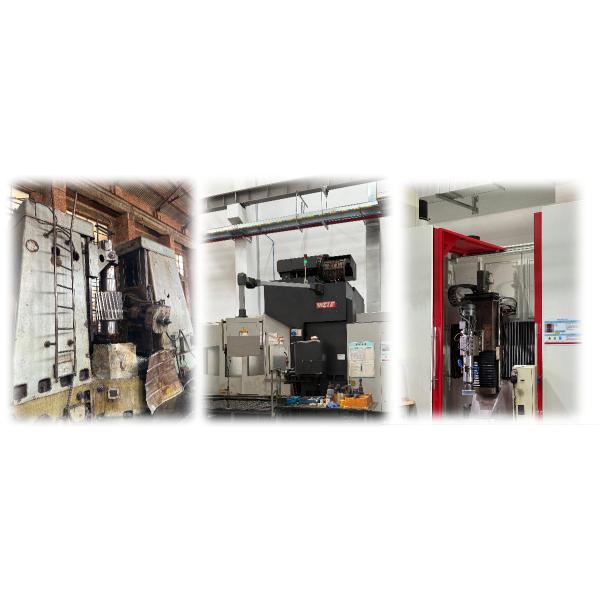

Production Equipment
Manufacturing Process
