DP1.732 22T Double Helical Gear Shaft Helix Angle 30° SAE 4340 Steel

Brand Name : YIZGEAR

Model Number : GS22112401

Place of Origin : CHINA

MOQ : 2 Pieces

Price : $1850.0/Piece

Payment Terms : L/C, D/P, Western Union, T/T

Supply Ability : 300 Pieces/Month

Delivery Time : 60 Days

Packaging Details : Plywood Crate

Material : 40CrNiMo

DP : 1.732

Helix Angle : 30°

Profile : Double Helix

Teeth width : 11"

Pressure Agnle : 20°

Contact Now

SAE 4340 Steel DP1.732 22T Double Helical Gear Shaft Helix Angle 30°
1) Description of Gear Shaft
A gear shaft with the gearing curves at each section is introduced as intersecting shaft gears.
Spiral Bevel gears are common examples of the gear profiles used on these forms of accurate-made shafts.
2) PASO DIAMETRAL 1.5
ANGULO DE PRESION 20°
DIAMETRO PRIMITIVO 14.667"
NUMERO DE DIENTES 22
AGGULO DE HELICE 30°

ProductsDouble Helical Gear Shaft
Custom Made√
Gear Profile TypeCylindrical Gear
Gear Teeth ManufacturingGear Milling
Gear Teeth Grinding
Module (M)16.933
Number of Teeth (Z)22
Pressure Angle (α)20°
Lead Angle30°
Accuracy GradeISO 8 Grade
Heat TreatmentQuenching & Tempering
Surface Hardness260-290 HB

STEEL CODE GRADES COMPARISON
CHINA/GBISOГΟСТASTMJISDIN
45C45E4451045S45CCK45
40Cr41Cr440X5140SCr44041Cr4
20CrMo18CrMo420ХМ4118SCM2225CrMo4
42CrMo42CrMo438XM4140SCM44042CrMo4
20CrMnTi　18XГT　SMK22　
20Cr2Ni4　20X2H4A　　　
20CrNiMo20CrNiMo220XHM8720SNCM22021NiCrMo2
40CrNiMoA　40XH2MA/
40XHMA		4340SNCM43940NiCrMo6/
36NiCrMo4
20CrNi2Mo20NiCrMo720XH2MA4320SNCM420　


DP1.732 22T Double Helical Gear Shaft Helix Angle 30° SAE 4340 Steel


Product Tags:

Double Helical Gear Shaft Helix



DP1.732 Transmission Gear Shaft



Transmission Gear Shaft 40CrNiMo


China DP1.732 22T Double Helical Gear Shaft Helix Angle 30° SAE 4340 Steel wholesale

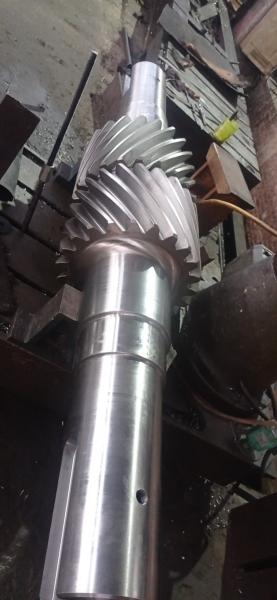

DP1.732 22T Double Helical Gear Shaft Helix Angle 30° SAE 4340 Steel Images
