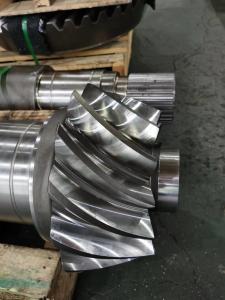

Right Hand Pinion Spiral Bevel Gear Drive Shaft With External Spline

Brand Name : YIZGEAR

Model Number : SB22112203

Place of Origin : CHINA

MOQ : 2 Sets

Price : $700/ Piece

Payment Terms : T/T, L/C

Supply Ability : 500 Sets/Month

Delivery Time : 62 Days

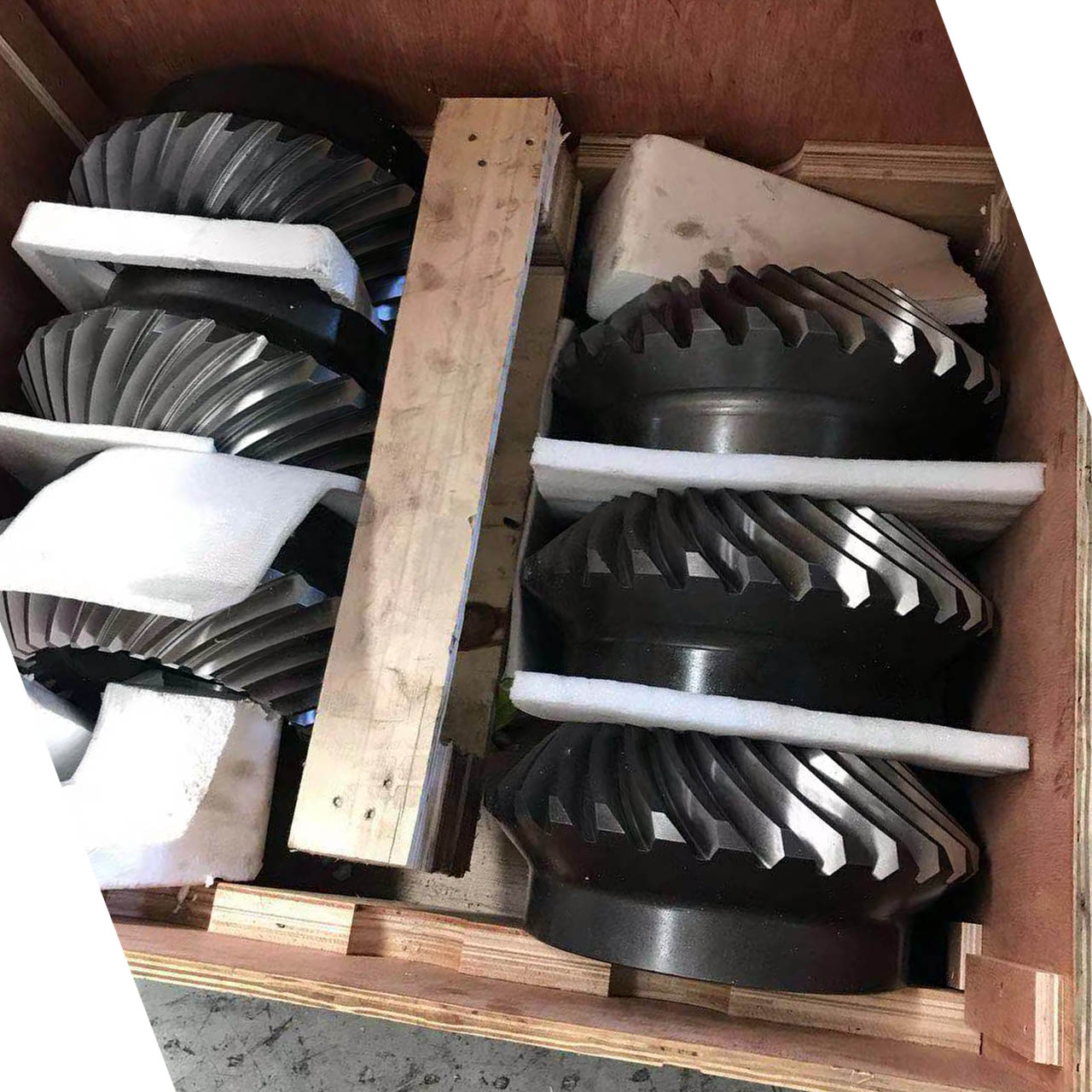

Packaging Details : Plywood Crate

Width : 120mm

Profile Type : Gleason

Roughness : Ra 0.8

Outer Diameter : 365

Manufacturing : Power Skiving

Brand : OEM

Contact Now

Right Hand Pinion Spiral Bevel Gear Drive Shaft With External Spline

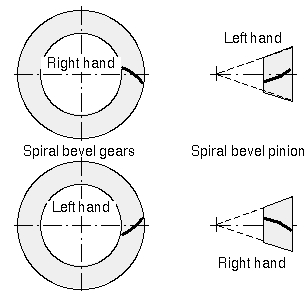

1) Direction of Spiral Bevel Gear

a) Right hand

Right hand spiral bevel gear is one in which the outer half of a tooth is inclined in the clockwise direction.

b) Left hand

Left hand spiral bevel gear is one in which the outer half of a tooth is inclined in the counterclockwise direction.

Right Hand Pinion Spiral Bevel Gear Drive Shaft With External Spline

2) What is power skiving?

Power skiving is a continuous cutting process that enables machining to be carried out in a single setup.

The possibility to machine the complete component in a multi-task machine or machining centre in one single set-up

shortens production time, improves the quality.

Products Spiral Bevel Gears With External Splines
Custom Made √
Material 17CrNiMo6/18CrNiMo7

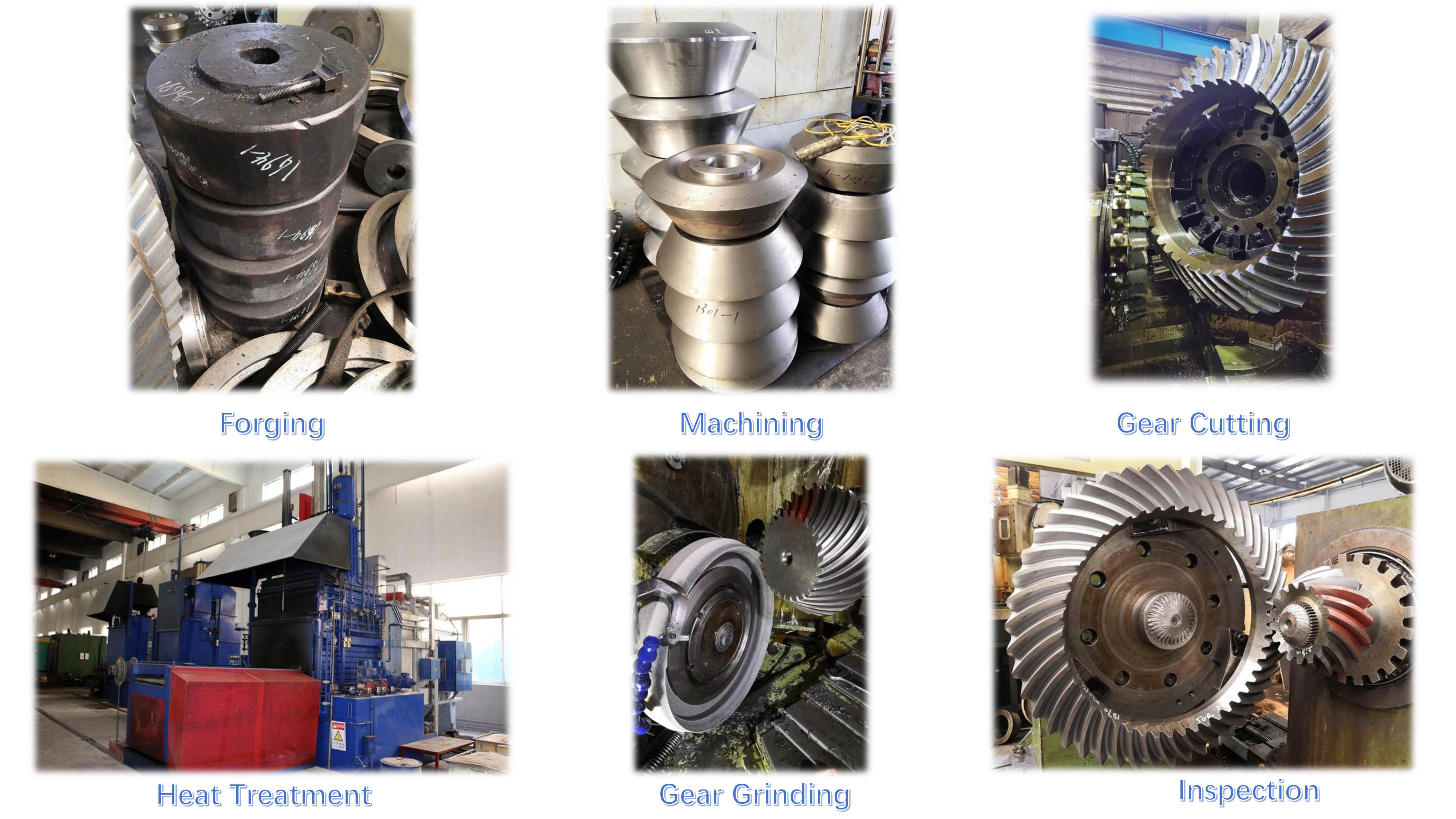

Gear Teeth Manufacturing Gear Milling & Gear Teeth Grinding
Gear Teeth Grinding √
DP 2.54
Number of Teeth (Z) 14T
Pressure Angle (α) 20°
Helix Angle (β) 35°
Teeth Accuracy Grade ISO 6 Grade/ AGMA 11Grade
Heat Treatment Carburizing
Surface Hardness 58-62HRCV

STEEL CODE GRADES COMPARISON
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 　 18XГT 　 SMK22 　
20Cr2Ni4 　 20X2H4A 　 　 　
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 　 40XH2MA/
40XHMA		 4340 SNCM439 40NiCrMo6/
36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420 　

Right Hand Pinion Spiral Bevel Gear Drive Shaft With External Spline

Right Hand Pinion Spiral Bevel Gear Drive Shaft With External Spline
