16.477 Module Steel Spiral Bevel Gears With Internal Rectangular Spline

Name: 16477 Module Steel Spiral Bevel Gears With Internal Rectangular Spline
Brand: YIZGEAR
Price: 300 USD

China 16.477 Module Steel Spiral Bevel Gears With Internal Rectangular Spline wholesale

Brand Name : YIZGEAR

Model Number : SB2207002

Place of Origin : CHINA

MOQ : 2 Sets

Price : $300/ Piece

Payment Terms : T/T, L/C

Supply Ability : 500 Sets/Month

Delivery Time : 62 Days

Packaging Details : Plywood Crate

Module : 16.477

Pressure Angle : 20°

Helix Angle : 15°

Material : 17CrNiMo6

Heat Treatment : Carburizing

Manufacture Processing : Gear Teeeth Grinding

Contact Now

16.477 Module Steel Spiral Bevel Gears with Internal Rectangular spline

1) Description of Spiral Bevel Gear

Spiral bevel gear is a special type bevel gear, a spiral bevel gear with a cruve helical angle.

2) Gear Quality of Spiral Bevel Gear

Standard spiral bevel gear manufactured by gear teeth milling processing.

The spiral bevel gear can be with gear teeth grinding processing after heat treatment.

The gear teeth quality can reach ISO 5-6 grade (AGMA 10-11 Grade)

Technical Specifications

Parameter	Specification
Custom Made	Available
Gear Profile Type	Gleason
Manufacturing Process	Gear Milling & Gear Teeth Grinding
Teeth Grinding	Included
Module (M)	Custom
Number of Teeth (Z)	Custom
Pressure Angle (α)	Custom
Lead Angle	Custom
Accuracy Grade	ISO 6 Grade/ AGMA 11Grade
Heat Treatment	Carburizing/Cement Quenching
Surface Hardness	58-62HRC

Steel Code Grades Comparison

CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

Production Equipment

16.477 Module Steel Spiral Bevel Gears With Internal Rectangular Spline

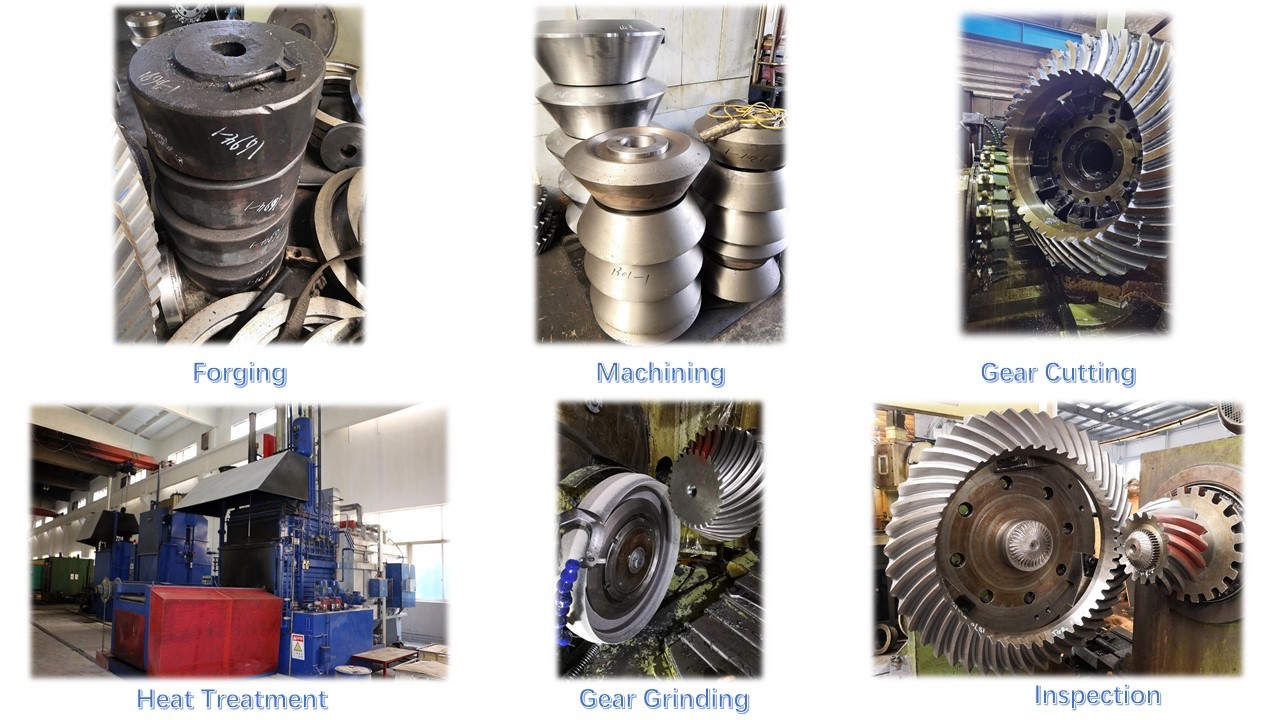

Production Process

16.477 Module Steel Spiral Bevel Gears With Internal Rectangular Spline

Product Tags:

16.477 Module Steel Spiral Bevel Gears

Internal Rectangular Spline bevel spiral gear

16.477 Module bevel spiral gear
